Does Your Venue Have Enough Power for Your Lighting Plan?

A venue having outlets is not the same thing as a venue having capacity, & that gap is where a lighting plan actually falls apart. Most rooms built for banquets & conferences carry enough power for house lighting, a podium mic & a coffee station. They were never wired to run four lighting zones, a few moving heads & an LED video wall off the same circuit the room has had since it was built.

A corporate event lighting plan needs enough dedicated power to run every fixture at once, plus a planning allowance on top of that total load. The honest way to know whether a venue can actually supply it: add up every fixture's real wattage, convert that total to amps, & ask the venue's own technical contact what's really available on that circuit before the lighting design gets locked, not after it's already rented.

What Actually Draws the Power

Shehds puts real numbers on what's plugged in: "A modern LED PAR light draws 50W-200W depending on LED count and brightness," & "moving head lights draw 100W-400W depending on type and wattage." The efficiency gain over older fixtures is real: LED fixtures use far less power than incandescent or discharge-lamp ones, to the point that "a 200W LED moving head produces output comparable to a 1,000W halogen fixture." That's genuine headroom. It is not a reason to skip the math. A room running a dozen moving heads, an uplighting package & a video wall adds up fast even at LED wattage, & the plan still has to prove it fits the circuit that's actually there.

How to Calculate What the Plan Actually Needs

Primal Sounds frames the method plainly: "Total the input watts and quantities of equipment that will run together, recording starting requirements separately." That means every fixture's real manufacturer spec, not a round estimate, added up against what else is drawing from the same source at the same moment. Converting that total to amps at standard voltage is simple division, but it only means anything once the number on paper gets checked against the number the building can actually deliver. Primal Sounds is direct about where that number comes from: "Ask the venue's technical contact for the available supply details and any event-specific restrictions." Not the sales contact who booked the room. The person who knows what's behind the wall.

The 20% Rule Almost Nobody Budgets For

Elite Multimedia's Kenny Mason, writing about outdoor event lighting, puts a number on the cushion: "always give yourself a little extra power capacity, about 20% more than your total load, to prevent outages or last-minute resets." That cushion is the difference between a plan that works on paper & one that survives the load-in. Mason also names the fix that keeps one problem from becoming four: "If you're running lighting, sound, catering, or other equipment from the same source, make sure power is distributed evenly and critical lighting has its own circuit." A stage wash sharing a breaker with the chafing dishes is how a warming tray takes out a keynote.

When House Power Is Enough, and When It Isn't

The Lighting & Sound Company draws the line directly: "If your venue is in a field, under a tent, far from a building, or even in a building but electrical service is insufficient, a portable generator is the easiest way to supply your power needs." That last clause is the one planners miss. A generator isn't only for outdoor events. An older ballroom, a converted warehouse or a venue that's never run a full production lighting rig can be indoors & still short on real capacity. Generator sizing scales with the event: "Common sizes run from 1-kw all the way up to 220-kw to supply even the largest concert or major event." The stakes for getting this wrong are blunt: "An electrical failure will certainly be noticed by all in attendance."

Whose Job This Actually Is

Power planning falls into a gap because it isn't automatically the venue's job, & it isn't automatically the lighting vendor's job either, until someone names whose job it is. The fix is the same site walkthrough that already checks load-in doors & rigging points: add the venue's electrical contact to that walk, bring the fixture list with real wattage already totaled, & get a straight answer on available amps before the design is finalized, not during setup when a generator rental on short notice costs more & arrives later than the plan can afford.

If the lighting plan is further along than the power plan behind it, that's worth a conversation before the rental order goes out. Tell us what the room & the program need & we'll check the math against what the venue can actually deliver. Related reading: what lighting design actually controls, & how many zones that design usually needs to run.

Questions planners ask us

Does my venue have enough power for event lighting?

Only checking tells you. Total the real wattage of every fixture running at once, convert it to amps, add a planning margin on top (more on that margin below), & compare that number against what the venue's own technical contact confirms is actually available on that circuit. A room having outlets doesn't mean it has capacity.

How do I calculate how much power my lighting plan needs?

Add up the manufacturer's input watts for every fixture that will run at the same time, including anything else sharing that circuit, then convert the total to amps at the venue's supply voltage. Add a planning margin on top before comparing it to what the venue can supply.

When does a corporate event need a generator for lighting?

Whenever house power can't cover the calculated load with its safety margin, whether that's an outdoor or tented event with no building power at all, or an indoor venue whose existing electrical service is genuinely insufficient for a full lighting rig. Older or smaller venues can fall into the second category even though they're indoors.

Who is responsible for checking venue power capacity?

It has to be named, because it isn't automatic for either side. The lighting vendor can total the load, but only the venue's technical contact knows what the building can actually deliver. The planner's job is making sure that conversation happens during the site walkthrough, before the design is locked in, not during setup.

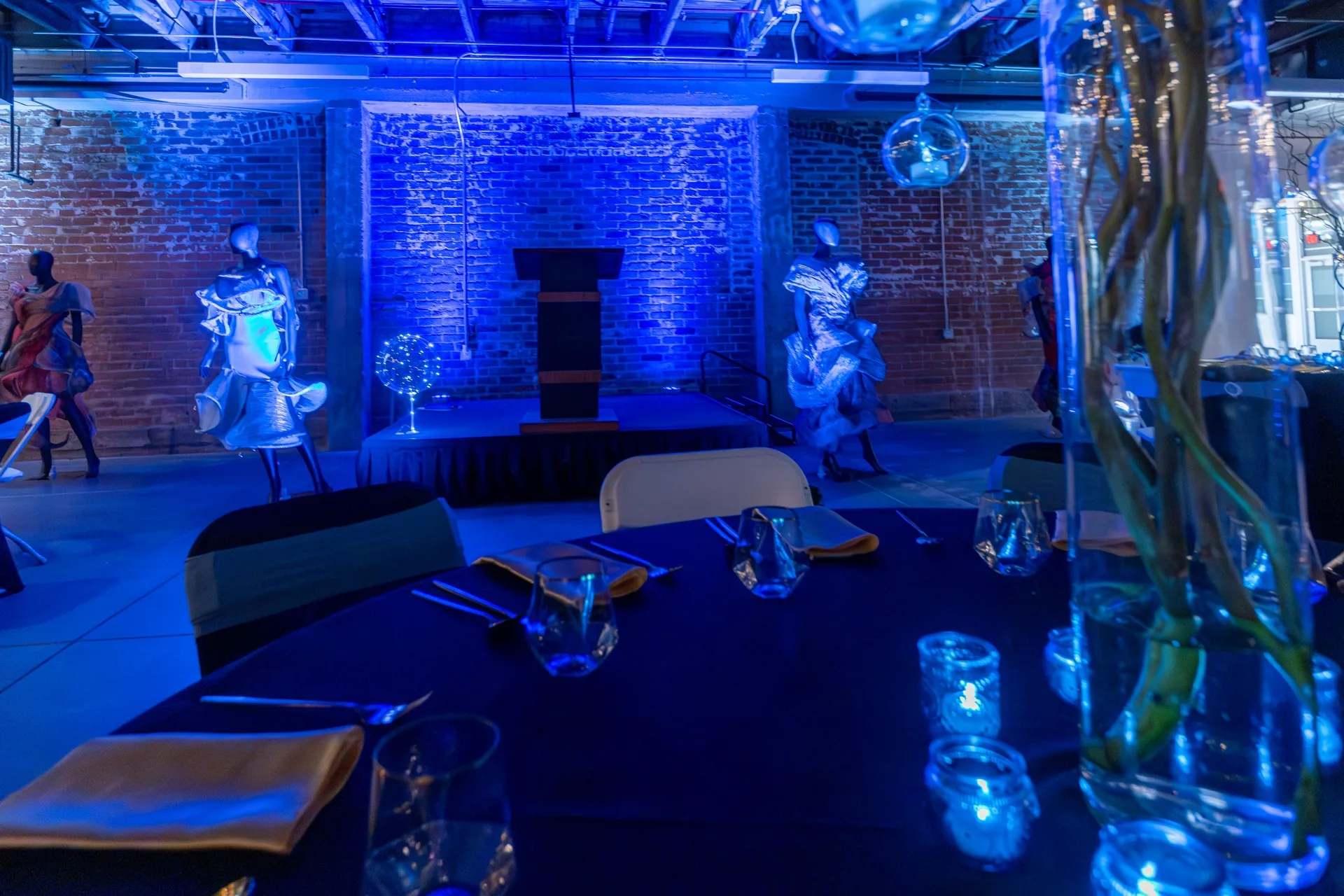

Photo: Your Media Guy.
